Advanced LogQL tutorial

Advanced techniques for exploring logs using LogQL in the Giant Swarm Observability Platform.

This tutorial covers advanced LogQL techniques for analyzing logs in the Giant Swarm Observability Platform. Building on basic log exploration, you’ll learn to craft sophisticated queries for complex troubleshooting scenarios and log analysis.

Prerequisites

Before proceeding, ensure you have:

  • Basic understanding of LogQL syntax (refer to the Grafana - Log queries)
  • Familiarity with Kubernetes concepts and Giant Swarm cluster architecture

Access to logs

Once you have access to your management cluster’s Grafana, you should:

  1. Go to Explore item in the Home menu
  2. Select Loki as data source on the top left corner
  3. Choose how you prefer to build your queries:
    • builder and use the dropdown-menus to build your query
    • code to write your query using LogQL

Query examples with results

Here are real LogQL queries executed against a Giant Swarm cluster with their actual results:

Multi-label filtering

Query logs from a specific cluster and service:

Query:

{cluster_id="myCluster", scrape_job="kubernetes-pods", service_name="nginx"}

Sample Result:

100.64.193.223 - - [01/Jul/2025:15:30:06 +0000]  400 "POST /loki/api/v1/push HTTP/1.1" 2459 "-" "Alloy/v1.9.0 (linux; helm)" "3.9.58.214"
100.64.193.223 - - [01/Jul/2025:15:30:05 +0000]  400 "POST /loki/api/v1/push HTTP/1.1" 2458 "-" "Alloy/v1.9.0 (linux; helm)" "3.9.58.214"
100.64.192.119 - - [01/Jul/2025:15:30:05 +0000]  400 "POST /loki/api/v1/push HTTP/1.1" 2458 "-" "Alloy/v1.9.0 (linux; helm)" "3.9.58.214"

This is also called a log stream selector, regex can also be used to match labels, see the Grafana - Log stream selector for more details.

Error and warning detection

Filter logs for specific error patterns across a cluster:

Query:

{cluster_id="myCluster", scrape_job="kubernetes-pods", service_name="nginx"} |~ `(?i)error|failed|warning`

Sample Results:

100.64.106.205 - - [01/Jul/2025:14:38:17 +0000]  499 "GET /loki/api/v1/query_range?direction=backward&end=1751380695823000000&query=xxxxxxxxxx&start=1751380395000000000&step=1000ms HTTP/1.1" 0 "-" "Grafana/12.0.0+security-01" "-"
100.64.106.205 - - [01/Jul/2025:14:38:15 +0000]  499 "GET /loki/api/v1/query_range?direction=backward&end=1751380692390000000&query=xxxxxxxxxx&start=1751359080000000000&step=60000ms HTTP/1.1" 0 "-" "Grafana/12.0.0+security-01" "-"

This query uses a regex to match log lines containing error, failed, or warning. The (?i) makes the regex case-insensitive. See the Grafana - Line filter expression for more details.

Log volume metrics

Query:

sum(count_over_time({cluster_id="myCluster", scrape_job="kubernetes-pods", service_name="nginx"}[1h]))

Sample Results:

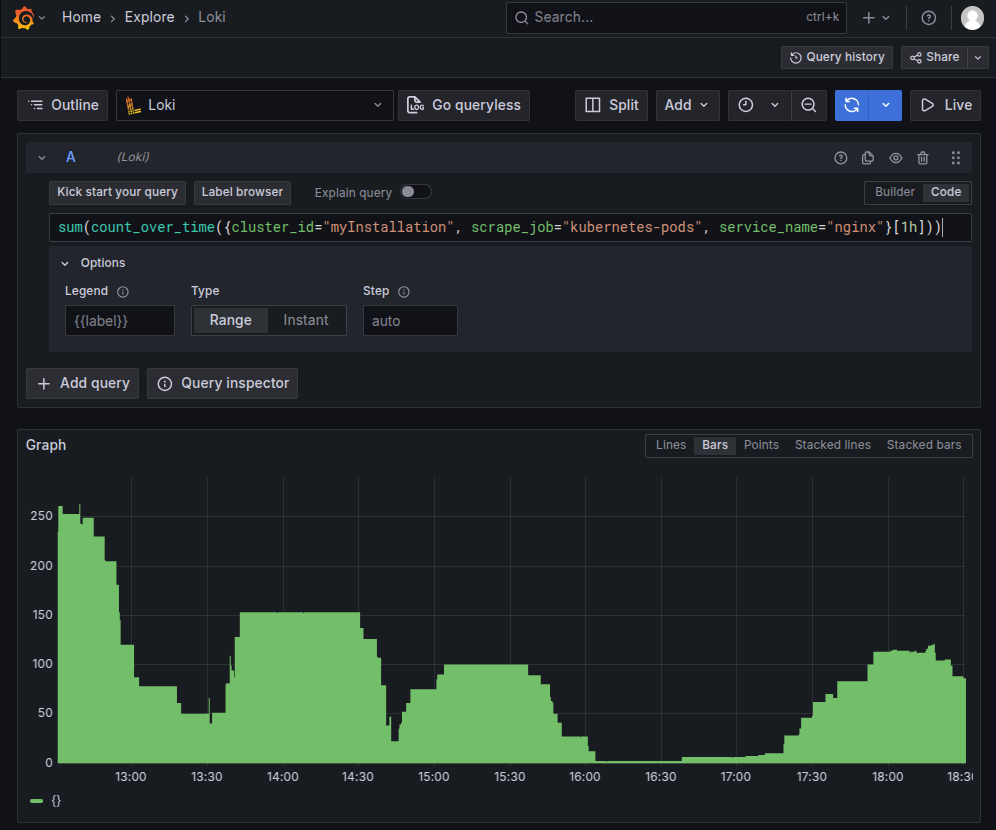

Loki log volume metrics

This shows the volume of logs per hour helping identify spikes or drops in log activity. More details can be found in the Grafana - LogQL.

Advanced filtering techniques

Extracting patterns from application logs

Parse and filter on any pattern structures found in application logs, here Nginx access logs:

Query:

{cluster_id="myInstallation", scrape_job="kubernetes-pods", container="nginx"}
| pattern `<ip> - - [<_>]  <status> "<method> <uri> <_>" <size> <_> "<agent>" <_>`
| status < 200 or status > 299

Sample Results:

100.12.345.67 - - [01/Jul/2025:15:11:16 +0000]  400 "GET /nonexistent HTTP/1.1" 58 "-" "curl/8.14.1" "-"
100.12.345.67 - - [01/Jul/2025:15:11:14 +0000]  400 "GET /dummy HTTP/1.1" 58 "-" "curl/8.14.1" "-"
100.12.345.67 - - [01/Jul/2025:15:08:35 +0000]  101 "GET /loki/api/v1/tail?query=%7Bstream%3D%22stdout%22%2Cpod%3D%22loki-canary-86b869b45c-2t68n%22%7D+ HTTP/1.1" 959409 "-" "Go-http-client/1.1" "-"
100.12.345.67 - - [01/Jul/2025:14:58:20 +0000]  101 "GET /loki/api/v1/tail?query=%7Bstream%3D%22stdout%22%2Cpod%3D%22loki-canary-86b869b45c-92bxq%22%7D+ HTTP/1.1" 960163 "-" "Go-http-client/1.1" "-"

Different parsers can be used to extract structured data from logs, such as json, logfmt, regex, or unpack. The choice depends on the log format and your specific needs. See the Grafana Loki LogQL documentation for more details.

Dynamic field extraction with line formatting

Extract specific fields and create custom log output formats:

Query:

{cluster_id="myCluster", pod=~"observability-operator-.*"}
| json
| controller="cluster"
| line_format "{{.ts}} [{{.level}}] {{.namespace}}/{{.name}}: {{.msg}}"

Sample Results:

2025-07-01T14:02:29Z [info] monitoring/myInstallation: alloy-service - ensured alloy is configured
2025-07-01T14:02:29Z [info] monitoring/myInstallation: alloy-service - current number of shards
2025-07-01T14:02:29Z [info] monitoring/myInstallation: alloy-service - ensuring alloy is configured
2025-07-01T14:02:29Z [info] monitoring/myInstallation: application is configured successfully
2025-07-01T14:02:29Z [info] monitoring/myInstallation: configure application

This allows you to format log lines for better readability and focus on relevant information. The line_format function is powerful for customizing log output. See the Grafana - Line format expression for more details.

Performance monitoring with log metrics

Error rate calculation

Generate metrics to track error rates across services:

Query:

sum(rate({cluster_id="myInstallation", service_name="kube-apiserver"}[5m] |~ `(?i)error|exception|failed`)) by (service, namespace)
/
sum(rate({cluster_id="myInstallation", service_name="kube-apiserver"}[5m])) by (service, namespace)

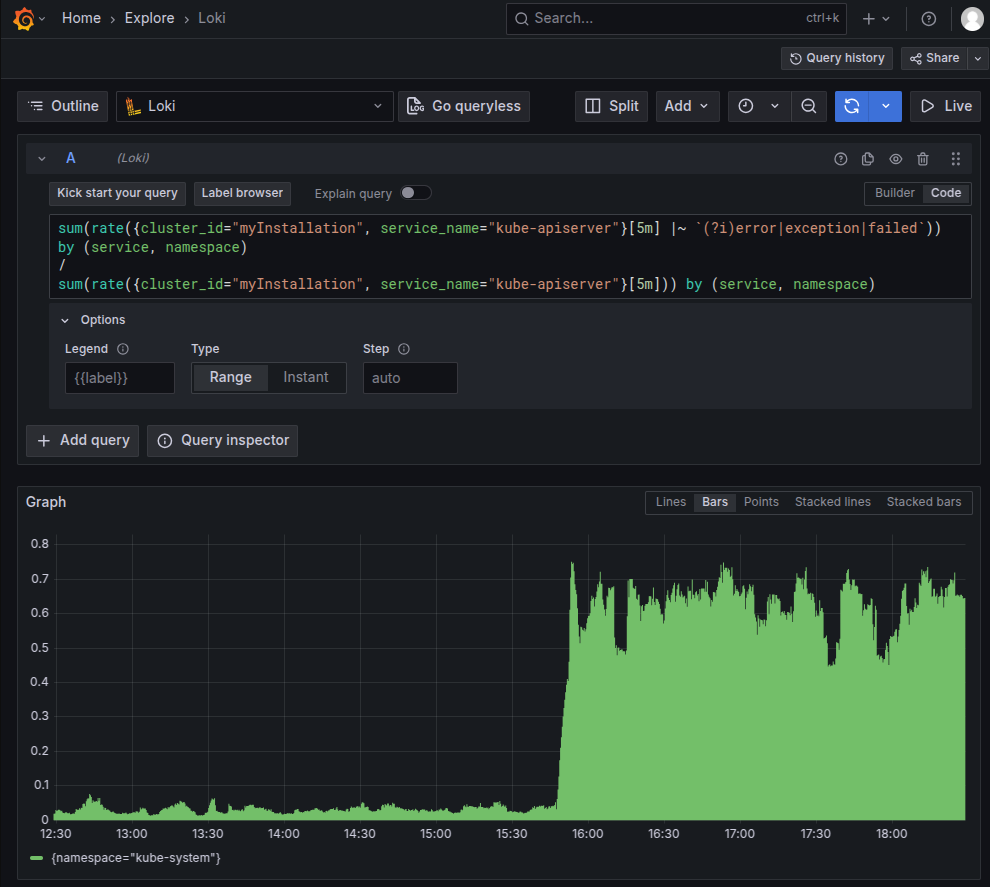

Sample Results: Loki log error rate

Request latency analysis from access logs

Extract latency metrics from application access logs:

Query:

quantile_over_time(0.95,
  {cluster_id="myInstallation", pod=~"kube-apiserver-.+"}
  |= `Request completed`
  | pattern `Trace[<trace_id>]:  ---"Request completed" <duration>ms (<_>)`
  | unwrap duration [10s]
)

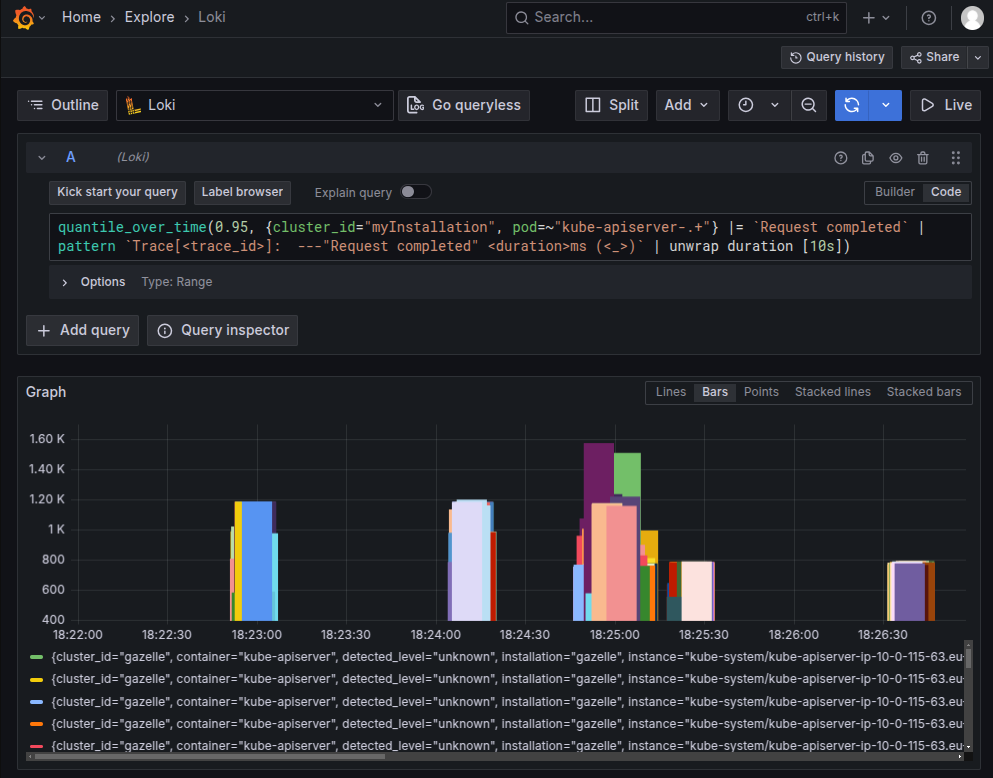

Sample Results: Loki latency analysis

System-level troubleshooting

Node resource monitoring

Analyze system logs for resource pressure indicators:

Query:

{cluster_id="myCluster", scrape_job="system-logs"}
| json
| SYSLOG_IDENTIFIER="kernel"
|~ `Out of memory|oom-kill|Memory cgroup out of memory`
| line_format `{{.node}} - {{.MESSAGE}}`

Sample Results:

ip-10-0-204-71 - kube-state-metr invoked oom-killer: gfp_mask=0xcc0(GFP_KERNEL), order=0, oom_score_adj=994
ip-10-0-204-71 - Memory cgroup out of memory: Killed process 105294 (kube-state-metr) total-vm:1159412kB, anon-rss:429324kB, file-rss:27104kB, shmem-rss:0kB, UID:65534 pgtables:996kB oom_score_adj:994

Best practices for advanced LogQL

  • Use specific label selectors to reduce query scope and improve performance
  • Leverage regex filtering with |~ before applying expensive operations like json
  • Combine log stream selectors strategically to balance specificity and coverage
  • Apply time ranges appropriate to your use case to optimize query performance
  • Use line formatting to create readable output for complex queries
